Metal Seal Mud Gate Valve

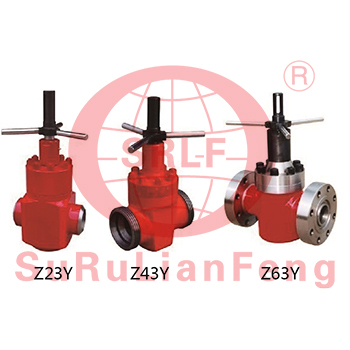

The Z23y 243Y and Z63Y series metal seal mud gate valves are mainly applied to drill fluid manifold, petro-chemical industry and other industrial high pressure pipeline.
|
Type |
Z23Y-35-DN50 |
Z23Y-35-DN65 |
Z23Y-35-DN80 |
Z23Y-35-DN100 |
Z43Y-70-DN50 |
Z43Y-70-DN65 |
Z43Y-70-DN80 |
Z43Y-70-DN100 |
|
Rated working Pressure |
35 |
70 |
||||||
|
Nominal |
Φ50（2 1/16） |
Φ65（2 9/16） |
Φ80（3 1/8） |
Φ100（4 1/16） |
Φ50（2 1/16） |
Φ65（2 9/16） |
Φ78（3 1/16） |
Φ101.6（4 1/16） |
|
Working Medium |
Mud |
Mud |
||||||
|
Connection Type |
Union |
Flange |
||||||
|
Fitting Connect Size |
Tr120×6
Tr100×12 |
Tr130×6
Tr120×6 |
Tr150×6 |
Tr180×8 |
BX152 |
BX153 |
BX154 |
BX155 |
|
Structure Length |
230 |
235 |
270 |
330 |
356 |
380 |
430 |
420 |
