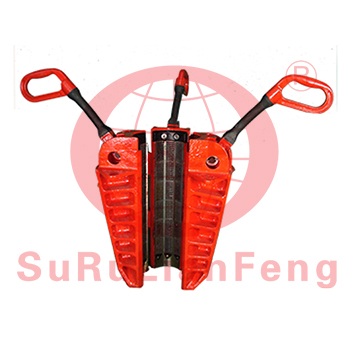

Rotary Slips
Rotary slips can accommodate drill pipe from 2 3/8-7in(60.3-177.8mm)O.D. They Are classified as type Ultra-Short(SDS-S),short(SDS),Medium(SDML) and Extra Long(SDXL) according to gripping length.SDS-S slips and SDS slips are designed for shallow drilling,SDML slips are the perfect choice for all medium depth drilling,SDXL slips are designed for deep drilling.
|
Model |
Slip Body Size(in) |
3.1/2 |
4.1/2 |
|||||
|
SDS |
Pipe Size |
in |
2.3/8 |
2.7/8 |
3-1/2 |
3.1/2 |
4 |
4.1/2 |
|
Mm |
60.3 |
73.0 |
88.9 |
88.9 |
101.6 |
114.3 |
||
|
Weight |
Kg |
53.1 |
50.3 |
48.5 |
64.9 |
61.7 |
57.6 |
|
|
b |
117 |
111 |
107 |
143 |
136 |
127 |
||
|
SDML |
Pipe Size |
In |
2.3/8 |
2.7/8 |
3.1/2 |
3.1/2 |
4 |
4.1/2 |
|
Mm |
60.3 |
73.0 |
88.9 |
88.9 |
101.6 |
114.3 |
||
|
Weight |
Kg |
87.5 |
85.3 |
81.6 |
94 |
90.3 |
85.3 |
|
|
lb |
193 |
188 |
180 |
207 |
199 |
188 |
||
|
SDXL |
Pipe Size |
in |
- |
- |
- |
3.1/2 |
4 |
4.1/2 |
|
mm |
- |
- |
- |
88.9 |
101.6 |
114.3 |
||
|
Weigh |
kg |
- |
- |
- |
103.9 |
99.3 |
93 |
|
|
lb |
- |
- |
- |
229 |
219 |
205 |
||
|
Model |
Slip Body Size(in) |
5 |
5.1/2 |
|||||
|
SDML |
Pipe Size |
in |
4 |
4.1/2 |
5 |
4.1/2 |
5 |
5.1/2 |
|
mm |
101.6 |
114.3 |
127 |
114.3 |
127 |
139.7 |
||
|
Weigh |
Kg |
92.5 |
88.9 |
84 |
90.9 |
84 |
82.1 |
|
|
lb |
204 |
196 |
185 |
200 |
185 |
181 |
||
|
SDXL |
Pipe Size |
in |
4 |
4.1/2 |
5 |
4.1/2 |
5 |
5.1/2 |
|
mm |
101.6 |
114.3 |
127 |
114.3 |
127 |
139.7 |
||
|
Weigh |
kg |
107.5 |
103 |
96.6 |
106.1 |
101.5 |
95.3 |
|
|
lb |
237 |
227 |
213 |
234 |
224 |
210 |
||
